What Is a Flywheel? Meaning, Function & Failure Signs

FLYWHEEL EXPLAINED

Imagine your mechanic says, “We need to check the flywheel,” while discussing a clutch problem, vibration, or strange starting noise. If you do not work on cars every day, that probably raises an obvious question: what exactly is a flywheel?

The easiest way to think about it is as a heavy spinning disc connected to the engine. It helps the crankshaft rotate more smoothly, stores rotational energy, supports engine starting, and gives the clutch a surface to grip in many manual-transmission vehicles.

Quick Answer

A flywheel is a rotating component bolted to the engine crankshaft. Its mass helps smooth engine rotation, stores rotational kinetic energy, works with the starter system, and provides a friction surface for the clutch in many manual-transmission vehicles.

What You’ll Learn

What Is a Flywheel?

Picture an engine running without anything helping to smooth its rotation. Every time a cylinder fires, the crankshaft receives a burst of force, and between those bursts its speed naturally tries to change. That would make the engine feel much rougher.

This is where the flywheel helps. It is a heavy circular component attached to the crankshaft, and because of its mass, it resists sudden changes in rotational speed.

The component itself looks fairly simple, but its weight and location explain why it has such an important job.

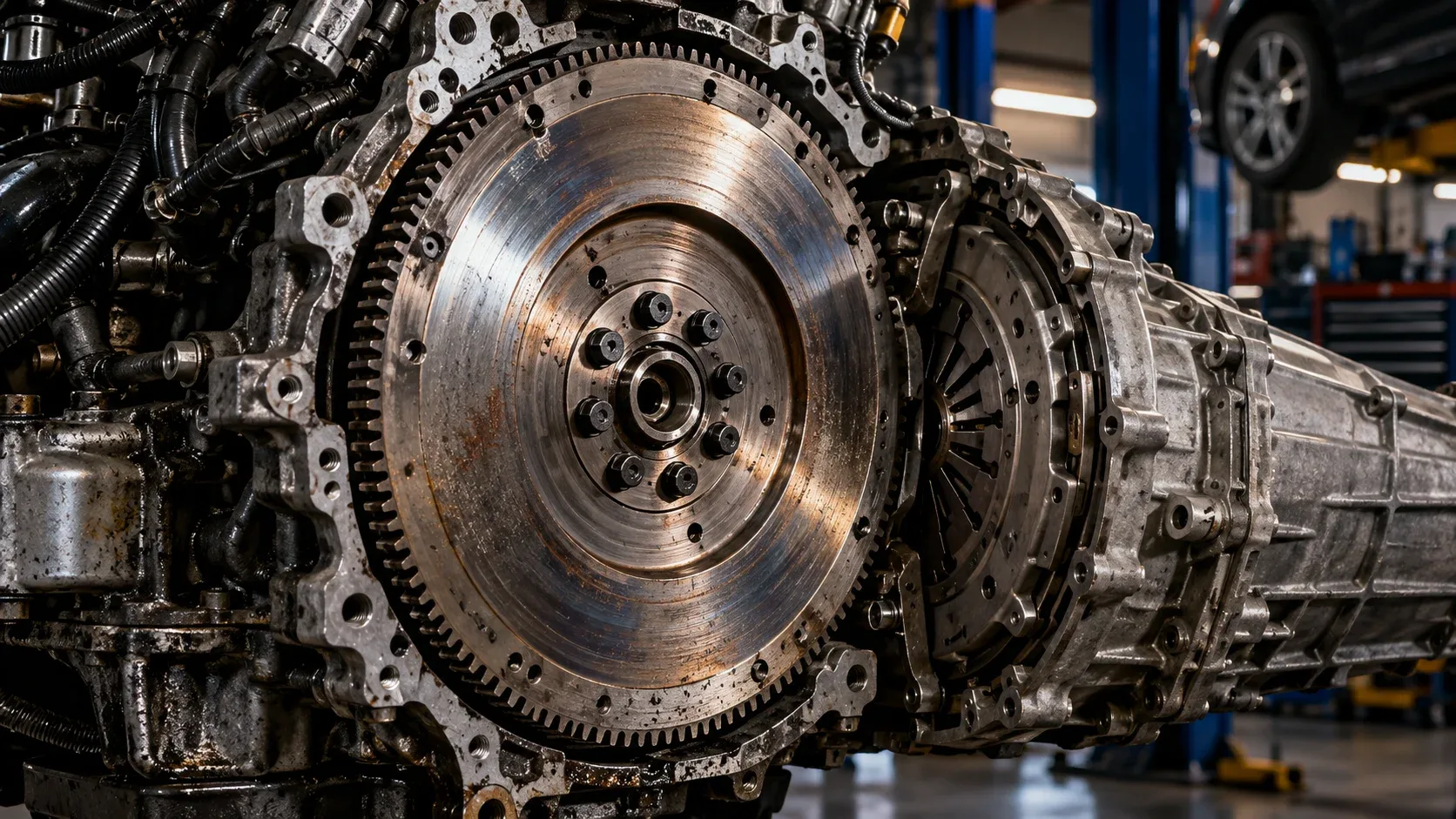

Automotive flywheel

As the flywheel keeps spinning, its momentum helps the crankshaft continue rotating more evenly instead of speeding up and slowing down sharply between individual power strokes.

Flywheel Definition and Meaning

If you only want the technical definition, it can be kept very simple.

A flywheel is a rotating mechanical component that stores kinetic energy and helps maintain a more consistent rotational speed.

A good way to understand the flywheel meaning is to imagine a heavy wheel already spinning. Once it has momentum, it does not want to suddenly stop or change speed.

An automotive flywheel uses the same idea. The engine creates the energy, while the flywheel helps carry that rotation more smoothly.

Where Is the Flywheel Located?

If you could separate the transmission from a manual-transmission engine and look between the two, the flywheel would be one of the first major components you would see.

It is bolted to the rear of the crankshaft, directly in front of the clutch.

Engine → Crankshaft → Flywheel → Clutch → Transmission

The image below shows why the flywheel sits right at the meeting point between engine power and the manual drivetrain.

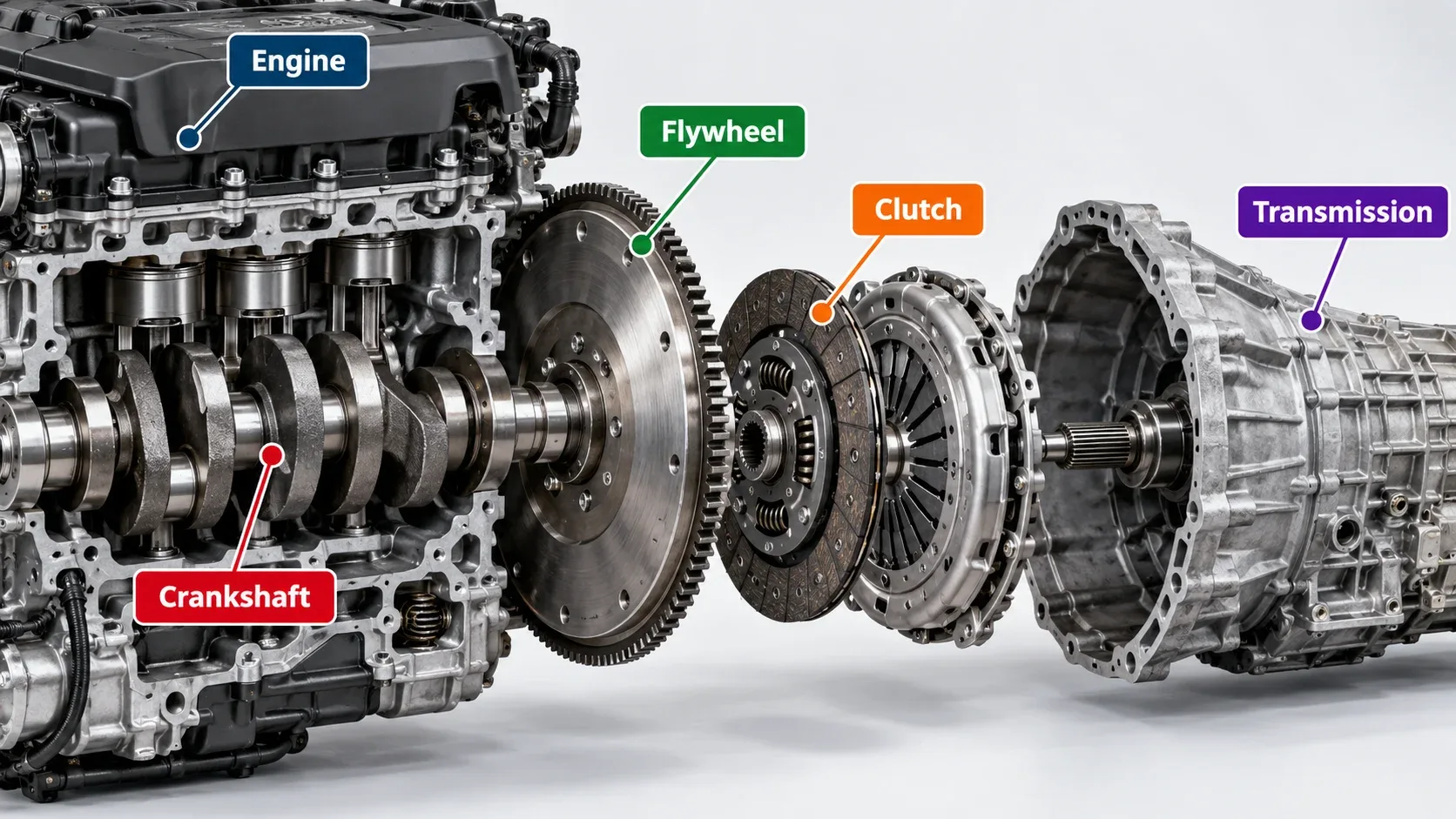

Location of a flywheel between the engine and transmission

That location also explains why flywheel repairs can involve significant labor. The part may look simple, but reaching it usually means removing or moving the transmission.

What Does a Flywheel Do?

The flywheel does more than one job. Think of it as a component that helps the engine remain smooth while also connecting the engine to other important systems.

Stores Energy

Its spinning mass stores rotational kinetic energy and helps keep the crankshaft moving between power strokes.

Smooths Rotation

It reduces sudden changes in crankshaft speed created by individual combustion events.

Helps Starting

The starter motor engages teeth around the flywheel to rotate the engine during startup.

Works With the Clutch

The clutch disc presses against the flywheel so engine torque can move into the transmission.

How Does a Flywheel Work?

Think about what happens every time fuel burns inside a cylinder. The piston is pushed down, the crankshaft receives a burst of force, and then another cylinder repeats the process.

Those power pulses are not perfectly smooth. As the crankshaft turns the flywheel, the flywheel stores some of that rotational energy in its spinning mass.

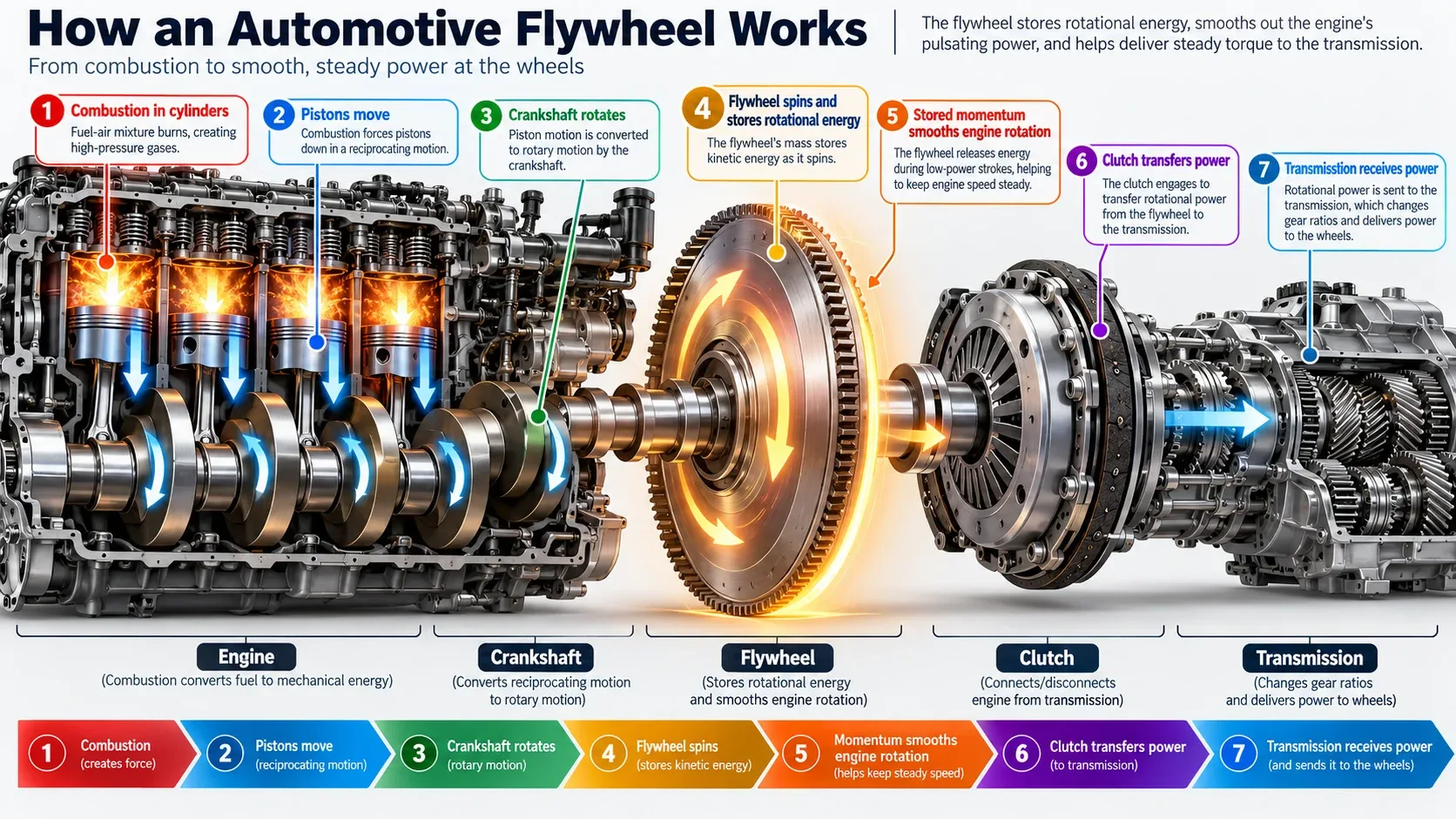

How a flywheel works

Between power strokes, that stored momentum helps keep the crankshaft moving more steadily. When the clutch is engaged, the same rotating flywheel helps send engine torque toward the transmission.

Easy way to remember it: the engine creates the power; the flywheel helps make that power feel smoother.

What Is a Flywheel in an Automobile?

In a car, the flywheel sits between two worlds: the engine and the transmission. On the engine side, it helps stabilize crankshaft rotation. On the drivetrain side, it works directly with the clutch.

When you release the clutch pedal, the clutch disc is pressed against the spinning flywheel and engine torque can move into the transmission. Press the pedal again and that connection is interrupted so you can change gears.

That close relationship is also why a flywheel problem can sometimes feel almost identical to a clutch problem.

Main Parts of a Flywheel

At first glance, a flywheel may look like nothing more than a heavy metal disc. Look closer, however, and several different areas have specific jobs.

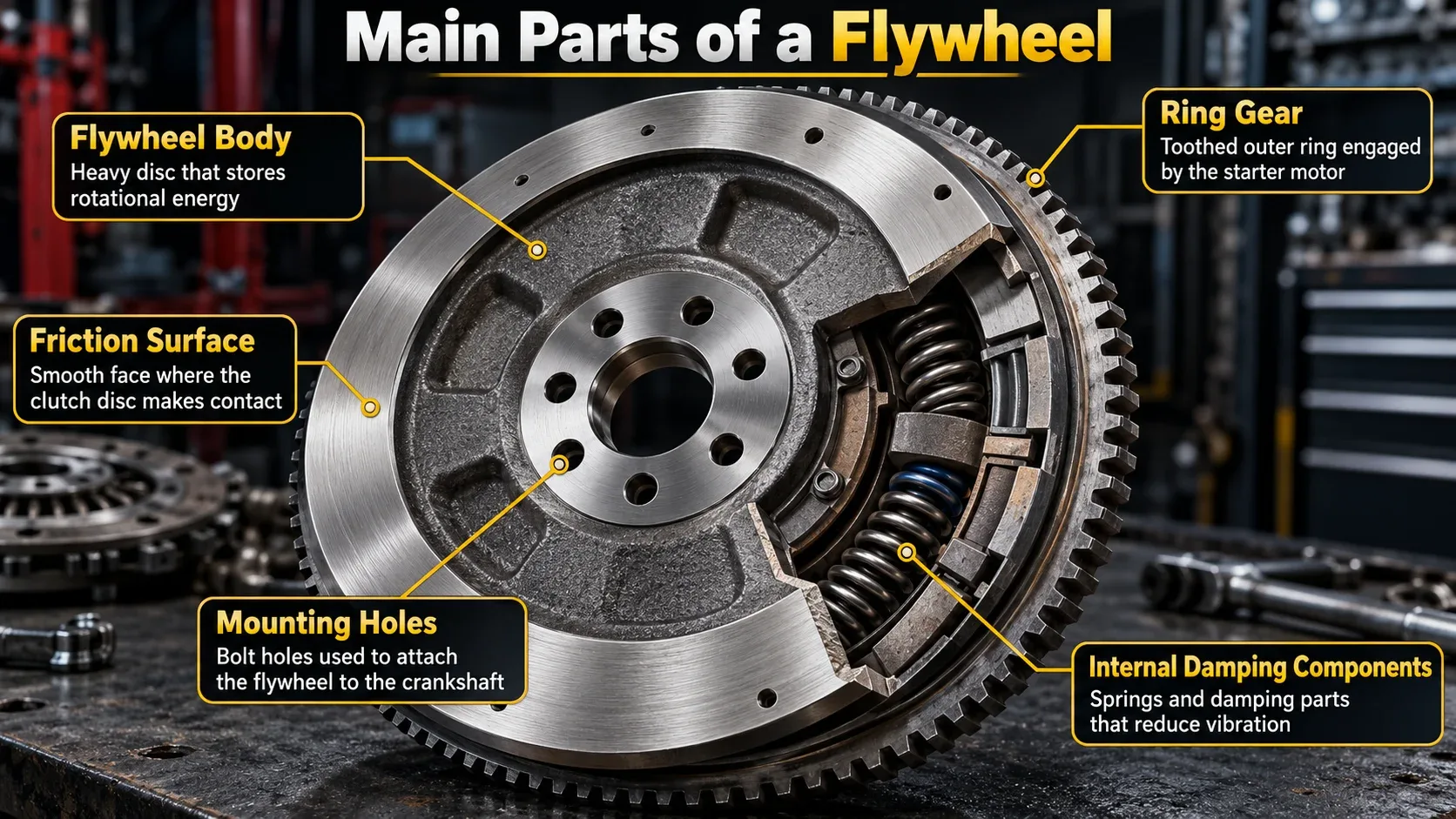

Main parts of a flywheel
Flywheel Body

Provides the mass required to store rotational energy.

Friction Surface

Gives the clutch disc a smooth surface to grip.

Ring Gear

Contains teeth used by the starter during engine startup.

Mounting Points

Secure the flywheel to the crankshaft.

Types of Flywheels

Not every flywheel is built the same way. Manufacturers choose different designs depending on how much vibration control, durability, and engine response they want.

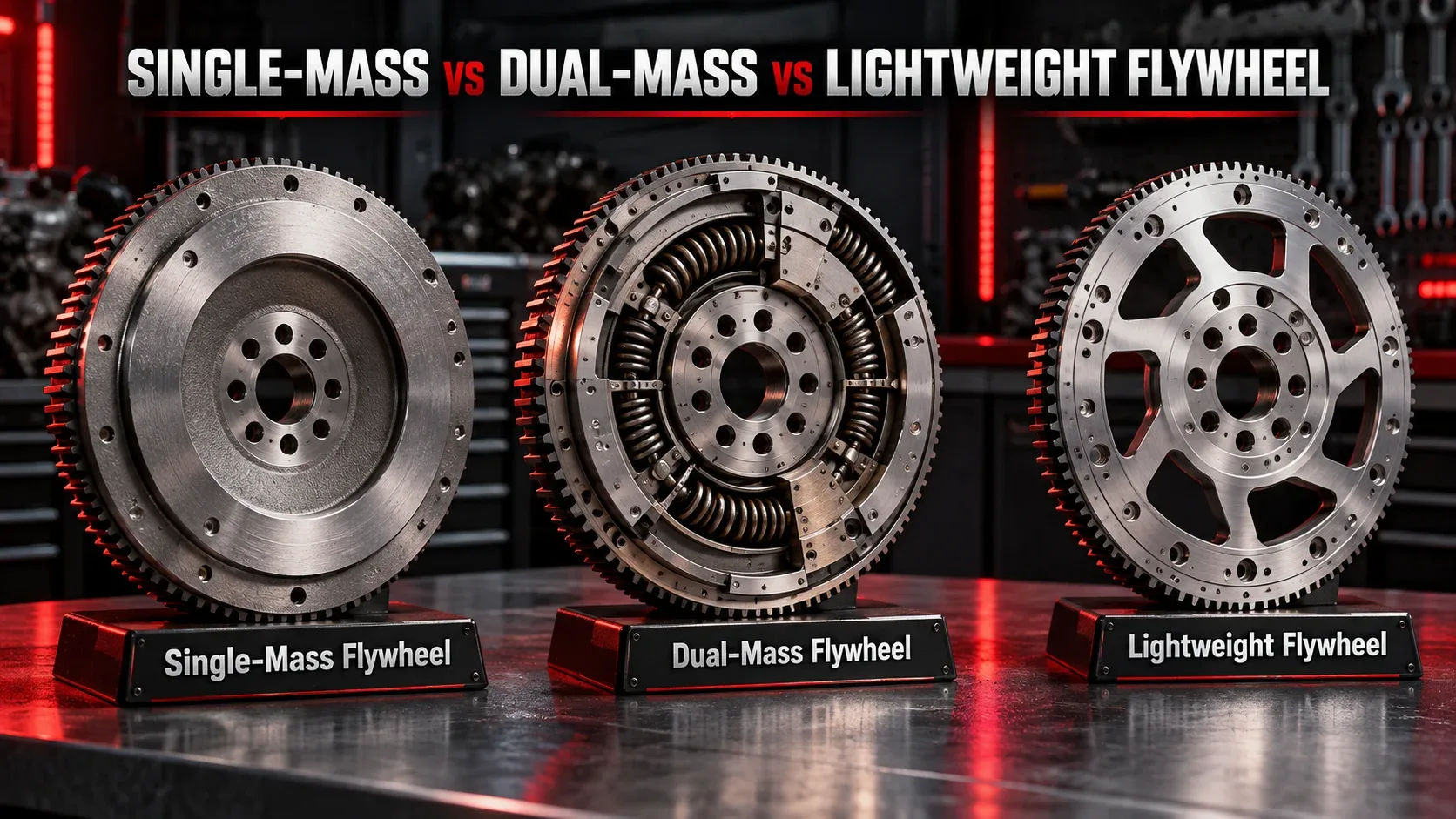

Types of flywheels

Single-Mass

A simpler solid design that is generally straightforward and durable.

Dual-Mass

Uses two main sections with internal damping to reduce drivetrain vibration.

Lightweight

Reduces rotating mass so engine RPM can rise and fall more quickly.

Flywheel vs Flexplate

If you have worked around automatic cars, you may have heard the word flexplate instead of flywheel. Both attach to the crankshaft, but they serve different transmission systems.

Placed side by side, the difference in construction becomes much easier to understand.

Flywheel vs flexplate
Feature Flywheel Flexplate
Transmission Usually manual Usually automatic
Construction Heavy and rigid Thin and flexible
Works with Clutch Torque converter

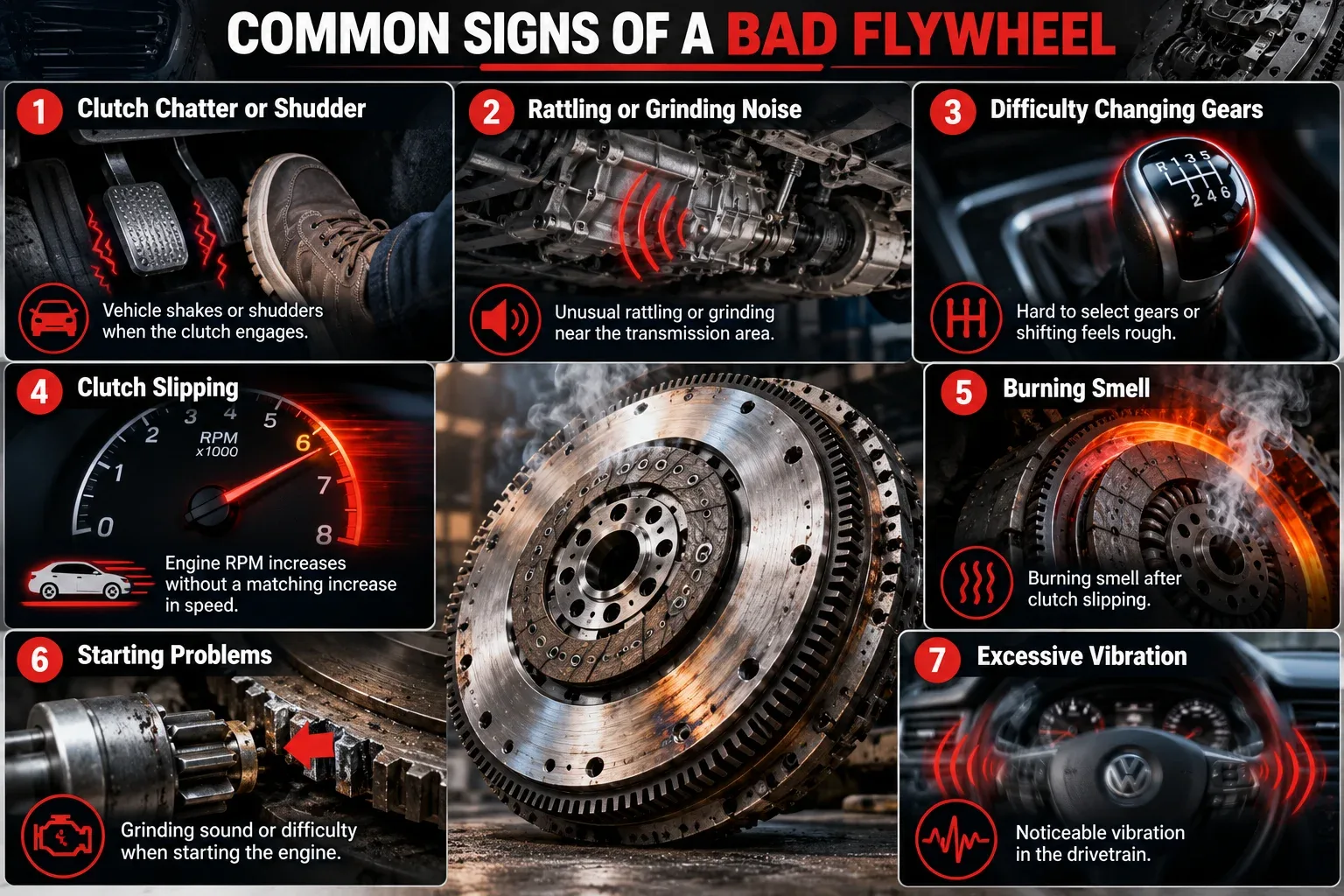

Common Signs of a Bad Flywheel

A failing flywheel does not always give you one obvious warning. Instead, the driver may notice several clues — a vibration here, an unusual noise there, or a clutch that no longer feels quite right.

The important part is not to jump straight to a diagnosis. Clutch parts, bearings, mounts, the starter, and transmission components can create similar symptoms.

Clutch Chatter or Shudder

Imagine slowly releasing the clutch from a stop and feeling the whole car shake instead of moving away smoothly. One possible reason is an uneven or overheated flywheel surface.

Clutch chatter or shudder

If the clutch cannot grip the surface evenly, engagement may happen in small grabs instead of one smooth motion. A contaminated clutch disc or pressure-plate problem can feel very similar.

Rattling or Grinding Noise

A strange metallic sound near the transmission can immediately make a driver think something serious has failed. Sometimes the flywheel is involved, but several parts live in this same area.

Rattling or grinding noise

A worn dual-mass flywheel may rattle internally, while damaged bearings, clutch parts, or transmission components may create similar noises.

Difficulty Shifting Gears

Suppose you press the clutch pedal but the next gear still feels reluctant to engage. The clutch may not be separating cleanly from the flywheel.

Difficulty shifting gears

The flywheel may be involved, but clutch hydraulics, adjustment, pressure-plate problems, or transmission faults should also be considered.

Clutch Slipping

Imagine pressing the accelerator and hearing the engine rev higher, but the car does not accelerate as strongly as expected. That is the kind of behavior drivers often describe as clutch slipping.

If the flywheel surface is badly worn or overheated, the clutch may struggle to grip it properly.

Clutch slipping

A worn clutch disc or weak pressure plate can cause the same symptom, so the complete clutch assembly should be inspected.

Burning Smell

A burning smell is usually telling you that something is getting too hot. In the clutch system, repeated slipping creates friction, and friction creates heat very quickly.

Burning smell caused by clutch and flywheel overheating

The smell alone does not prove the flywheel is damaged, but it is a warning that the clutch system is overheating and should not be ignored.

Starting Problems

The flywheel has a job before the engine even starts. The starter motor engages teeth around the flywheel ring gear and uses them to rotate the crankshaft.

If those teeth become damaged, you may hear grinding, experience intermittent starter engagement, or find that the starter sometimes struggles to turn the engine. The starter gear itself can wear too, so both sides should be checked.

Excessive Vibration

If a flywheel becomes damaged, incorrectly installed, or develops excessive internal movement, vibration may travel through the drivetrain.

A driver may notice it at idle, during acceleration, or while the clutch starts to engage.

Excessive vibration related to a flywheel problem

Vibration is also easy to misdiagnose. Engine mounts, clutch components, alignment problems, and other rotating parts can create a similar feeling.

Flywheel Problem or Clutch Problem?

This is where many drivers get confused. The clutch and flywheel work against each other during normal operation, so a problem with either part can feel almost identical from the driver’s seat.

Symptom Possible Flywheel Cause Possible Clutch Cause
Shudder Uneven or heat-damaged surface Contaminated or worn disc
Slipping Damaged friction surface Worn disc or weak pressure plate
Rattle Dual-mass wear Release-bearing or clutch issue
Starting grind Ring-gear damage Usually unrelated to clutch disc

The lesson is simple: symptoms can point you in a direction, but they do not identify the failed part by themselves.

What Causes Flywheel Damage?

Flywheels normally do not fail for no reason. Heat, mechanical stress, wear, or another drivetrain problem often starts the process.

Repeated clutch slipping
Riding the clutch
Aggressive engagement
Severe overheating
Worn clutch components
Excessive drivetrain vibration

In other words, how the clutch is used — and how quickly related problems are repaired — can have a major effect on flywheel life.

WORKSHOP VIEW

What Mechanics Look for During Flywheel Inspection

Once the transmission is removed, the flywheel can finally be inspected directly. Instead of guessing from vibration, noise, or clutch behavior, a mechanic can now look for physical evidence of damage.

Heat spots may show where excessive friction has overheated the surface, while deep scoring can reveal uneven clutch contact. Cracks require closer attention because their severity may rule out reuse, and damaged ring-gear teeth can explain starter engagement problems.

Flywheel inspection showing heat spots cracks scoring ring gear damage runout and dual mass play

The mechanic may also measure flywheel runout and, on a dual-mass flywheel, check whether internal movement stays within the manufacturer’s specified limits.

Heat Spots

Signs of excessive friction and overheating.

Scoring

Grooves that may affect smooth clutch contact.

Cracks

Damage that may rule out reuse depending on severity.

Ring-Gear Teeth

Checked for broken or badly worn teeth.

Can You Drive With a Bad Flywheel?

A car may continue driving while a flywheel problem is developing, but that does not mean it is wise to ignore the symptoms.

A small vibration today may become severe clutch chatter later, while damaged ring-gear teeth can eventually prevent the starter from engaging properly.

Arrange an inspection sooner if:

vibration becomes severe, grinding becomes heavy, clutch slipping increases, starting problems repeat, or gear changes become difficult.

There is no universal number of miles that is safe to drive with a suspected flywheel problem. The answer depends on what has failed and how severe the fault has become.

Flywheel Resurfacing vs Replacement

Now imagine the transmission is already out and the mechanic is holding the flywheel in front of you. The next question becomes: can this one be saved, or does it need replacing?

Resurfacing removes a controlled amount of material from the friction surface to restore a smoother clutch contact area.

Flywheel resurfacing vs replacement
Resurfacing May Work

When wear is moderate, there are no serious cracks, service dimensions remain acceptable, and machining is permitted.

Replacement Is More Likely

When severe heat damage, cracking, excessive wear, ring-gear damage, or failed dual-mass components are present.

How to Help a Flywheel Last Longer

You cannot control every mechanical failure, but driving habits can make a difference.

Avoid riding the clutch
Reduce unnecessary slipping
Use smooth clutch engagement
Repair new symptoms early

If a new vibration, rattle, or slipping problem appears, investigating it early can sometimes prevent damage from spreading to other drivetrain components.

How Mechanics Diagnose a Flywheel Problem

A good mechanic does not hear one rattle or feel one vibration and immediately say, “the flywheel is bad.” Several drivetrain problems can feel almost identical from the driver’s seat.

Diagnosis often begins with a road test. The mechanic pays attention to when the noise or vibration appears, whether it happens during clutch engagement, and whether pressing the clutch pedal changes the symptom.

Mechanic diagnosing a flywheel problem

If the transmission is later removed, the flywheel can be inspected directly for heat spots, cracks, scoring, damaged teeth, runout, or abnormal movement in a dual-mass design.

Measurements are then compared with manufacturer specifications before deciding whether the flywheel can be reused, resurfaced, or replaced.

REAL-WORLD EXAMPLE

A Car Shudders When Moving Away

Imagine a driver says, “My car shakes badly when I pull away in first gear.”

It is tempting to immediately blame the flywheel, but a mechanic would normally look deeper. An uneven flywheel surface is one possibility, but so are a contaminated clutch disc, worn pressure plate, or damaged engine mount.

The symptom is reproduced during a road test first. If the transmission is later removed, visible heat spots, scoring, or excessive runout on the flywheel provide much stronger evidence of the actual problem.

FLYWHEEL Q&A

Frequently Asked Questions

Open a question for a quick explanation.

What is a flywheel in simple words?
A flywheel is a heavy spinning component connected to the engine that stores rotational energy and helps the crankshaft turn more smoothly.
What is the main purpose of a flywheel?
Its main purpose is to store rotational kinetic energy and reduce variations in crankshaft speed.
How do I know if the flywheel or clutch is bad?
The symptoms often overlap. Shuddering, slipping, vibration, and noise may involve either component, so inspection of the complete system is usually needed.
Can a bad flywheel cause vibration?
Yes. A damaged or failing flywheel can contribute to drivetrain vibration, although mounts, clutch components, and other rotating parts can produce similar symptoms.
Can a flywheel be resurfaced?
Some conventional flywheels can be resurfaced when wear is limited and the manufacturer allows machining within specified service limits.
QUICK RECAP

Final Thoughts

If you remember only one thing, remember this: the flywheel helps the engine’s rotation stay smooth and forms an important connection between the engine and clutch.

When it becomes worn or damaged, the driver may notice vibration, chatter, slipping, noise, starting problems, or overheating — but those symptoms can also come from nearby components.

That is why the best approach is not to guess. Understand the symptom, inspect the complete system, and compare the flywheel against the correct service specifications before deciding whether it can stay, be resurfaced, or needs replacement.
